Calibrating Cameras

It is common to want to calibrate cameras for lens distortion.



First print out a standard chequerboard image, and take some photos of it from various angles. You can print out images, for example, here:

https://calib.io/pages/camera-calibration-pattern-generator

Here I assume these photos are in camera_cal/calibration*.jpg

Even if you ultimately want to calibrate the images from c++, python, javascript etc, the calibration itself can be done separately, in a more convenient language, producing a matrix that you can use pretty much anywhere.  In my case, I calibrate in a jypter notebook, but use the matrix in c++.

%matplotlib inline

import numpy as np
import cv2
import glob
import matplotlib.pyplot as plt
#%matplotlib qt

# prepare object points, like (0,0,0), (1,0,0), (2,0,0) ....,(6,5,0)
objp = np.zeros((6*9,3), np.float32)
objp[:,:2] = np.mgrid[0:9,0:6].T.reshape(-1,2)

# Arrays to store object points and image points from all the images.
objpoints = [] # 3d points in real world space
imgpoints = [] # 2d points in image plane.

# Make a list of calibration images
images = glob.glob('camera_cal/calibration*.jpg')

# Step through the list and search for chessboard corners
for fname in images:
img = cv2.imread(fname)
gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)

# Find the chessboard corners
ret, corners = cv2.findChessboardCorners(gray, (9,6),None)

# If found, add object points, image points
if ret == True:
objpoints.append(objp)
imgpoints.append(corners)

# Draw and display the corners
img = cv2.drawChessboardCorners(img, (9,6), corners, ret)
plt.imshow(img)
plt.show()

ret, camera_undistort_matrix, camera_undistort_dist, rvecs, tvecs = cv2.calibrateCamera(objpoints, imgpoints, gray.shape[::-1], None, None)

fname = images[8]
img = cv2.imread(fname)
gray = cv2.cvtColor(img,cv2.COLOR_BGR2GRAY)
ret, corners = cv2.findChessboardCorners(gray, (9,6),None)
print(ret)
img = cv2.drawChessboardCorners(img, (9,6), corners, ret)
dst = cv2.undistort(img, camera_undistort_matrix, camera_undistort_dist, None, camera_undistort_matrix)
img = np.concatenate((img, dst), axis=1)
plt.imshow(img)
cv2.imwrite("output_images/undistort_chessboard.png", img)
plt.show()

output_2_1

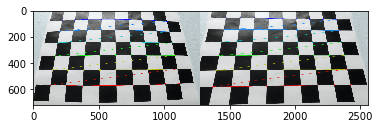

On the left is the original photo, and on the right is after applying the undistortion matrix warp.

import pickle
with open('camera_undistort_matrix.pkl', 'wb') as f:
pickle.dump((camera_undistort_matrix, camera_undistort_dist), f)
print(camera_undistort_matrix)
[[ 1.15777829e+03 0.00000000e+00 6.67113865e+02]
[ 0.00000000e+00 1.15282230e+03 3.86124659e+02]
[ 0.00000000e+00 0.00000000e+00 1.00000000e+00]]



img = cv2.imread("test_images/straight_lines1.jpg")
dst = cv2.undistort(img, camera_undistort_matrix, dist, None, camera_undistort_matrix)
img = np.concatenate((img,dst),axis=1)
img_rgb = cv2.cvtColor(np.asarray(img), cv2.COLOR_BGR2RGB)
plt.imshow(img_rgb)
cv2.imwrite("output_images/undistort_straight_lines1.png", img)
plt.show()

In the top left is the original image, in the top right is the undistorted image.  There is little difference to the eye, but the distortion lets us to now apply further distortions such as a perspective transform to provide an apparent “top-down view”.

It is also useful for applying other transforms key to stitching together images from multiple cameras.
